Description of CYCJET 32dots Small Character Inkjet Printing Equipment
CIJ inkjet printer is used for package printing, such as fast-moving consumer goods, electric cables, and medicine. CYCJET Small character inkjet printer is special for high-speed production line date and batch printing, like food, beverage, beer, wine, plastic pipes, electronic components, etc.

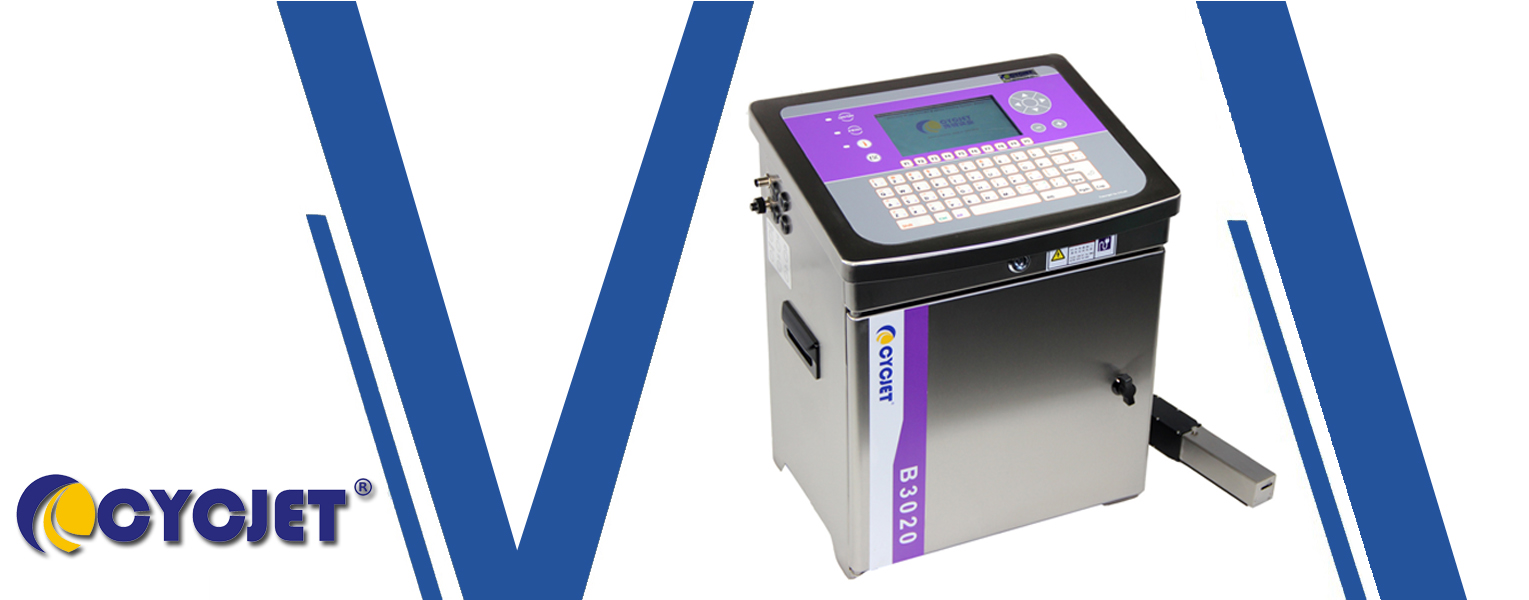

The max speed can be as fast as 300m/min. CYCJET B3020 high-speed CIJ inkjet printer can print a maximum of 32 dot matrix characters.
Through innovative design, the electrical systems, ink systems, and nozzle make the inkjet printer achieve greater stability. It is popularly used in high-speed production lines like food, beverage, beer, wine, oil, cables, pipes, etc.
Environment-friendly, user-friendly, and easy to operate, the B3020 industrial inkjet printer does not need to be cleaned on a daily basis as print heads are automatically cleaned at the end of each cycle for reliable start/stop performance.
Technical Parameter of CYCJET Industrial Inkjet Printer:
| Printing Lines | 1-5 lines |
Printing Points | 5x5 5x7 7x9 6x12 8x16 12x16 11x24 16x32 self prepare the dot matrix information when they are less than 32 dot matrix |
| Printing Speed | 3m/s(5x5) Max 345/min |
| Operation Interface | Chinese-English |
| Information Storage | Unlimited storing of printing information |
Printing Content | Date, time, auto date, auto period of validity, class number, batch number, serial number, four groups of counters, meter counting, self-prepared patterns, variable barcode, multiple fonts |
| Printing Length | 1024 characters |
| Printing Ink | Black, white, yellow, red, blue |
| Printing Height of Characters | 1-15mm(adjustable) |
| Printing Distance | 0-30mm(adjustable) |
| Character Widening | 1-9 times |
| Character Direction | Normal character, reversed character, inversed character, the direction can be set independently for a single character |
| Character Distance | 1-8 times, freely edition point by point is available |
Details of CYCJET B3020 CIJ Inkjet Printer/Date and Batch Inkjet Coding Machine:

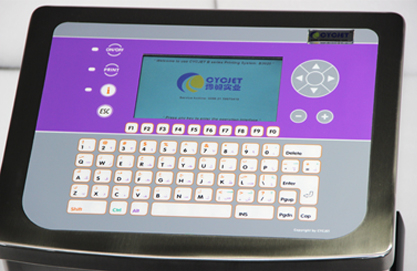

13" Color Keyboard, WYSIWYW.
RS232, USB interfaces.

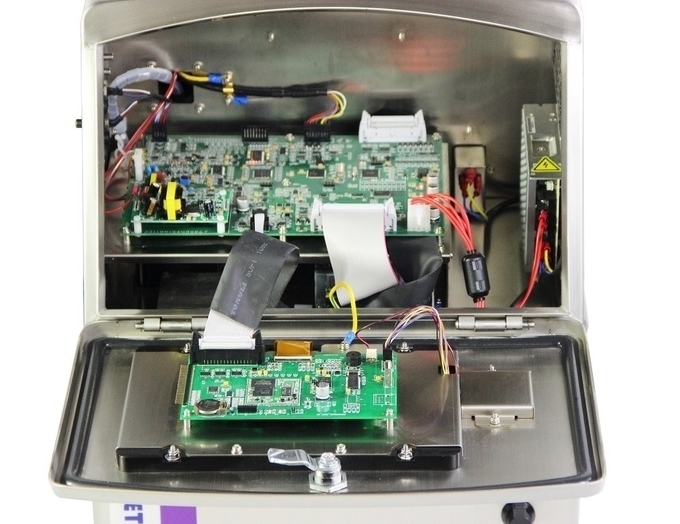

The controller is in small size, more flexible | Precise cables array makes sure that printer runs all the time stably.
Insulation sealed design. |

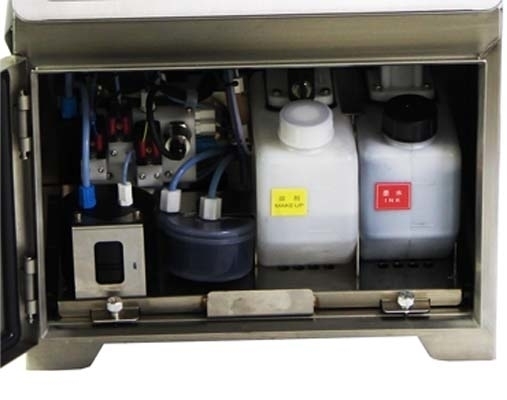

Total sealed ink system.
Special filter meets long-term

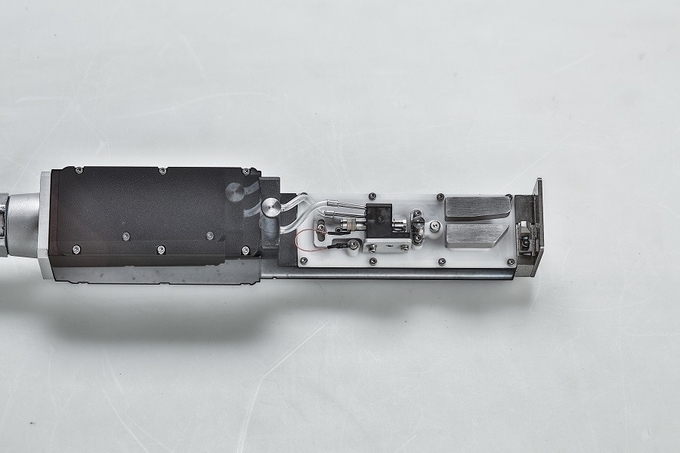

working mode | Gem nozzles, good precision.
Anti-block and self-cleaning design. Totally imported 32dots Nozzles. |
Printing Effects of CYCJET Industrial Inkjet Printer:
